Nanovib insulated Miner's bar

Nanovib insulated Miner's bar

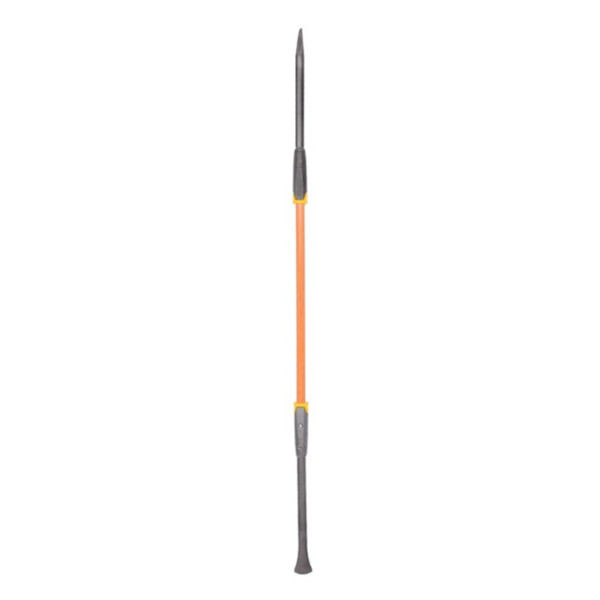

Miner's bar insulated up to 1000 V due to its 100% fiberglass handle

Nanovib insulated Miner's bar 1
Nanovib insulated Miner's bar 2
Nanovib insulated Miner's bar 3
Nanovib insulated Miner's bar 4
Nanovib insulated Miner's bar 5
Nanovib insulated Miner's bar 6
Nanovib insulated Miner's bar Nanovib insulated Miner's bar Nanovib insulated Miner's bar Nanovib insulated Miner's bar Nanovib insulated Miner's bar Nanovib insulated Miner's bar
Isolé
1000V

Prevention of risk of accident:

Prevention of risk of acciden

  • Insulated Miner's bar able to resist nominal tension up to 1000 V alternating current and 1500 V direct  current (in compliance with BS8020 standard)

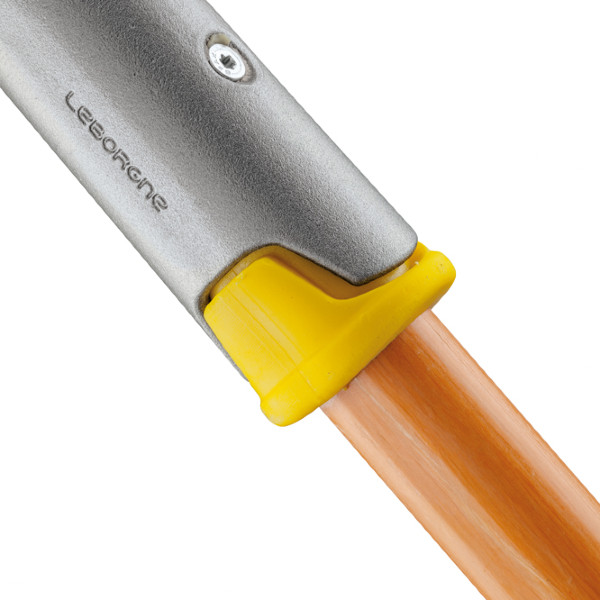

  • Block  to prevent hand coming in contact with the metal part of the tool.

Less weight

  • 20% lighter compared to  traditional all-steel Miner's bar.

Information Nanovib insulated Miner's bar

Strength

  • 100% fiberglass body of Miner's guarantees levrage capacity up to 1.5 T
  • Forged steel working parts, pointed end for digging and flat end for levrage

Ergonomics

  • Oblong section of central fiberglass part of the tool, comfortable grip

Safety recommendations

  • Wear goggles, gloves and protective clothing.
  • To avoid all risk of electrocution, do not work while standing in water.
  • Examine tool by visual checks before each use.
  • Once a year, have the tool checked by visual examination by a person trained to carry out these verifications.
  • Levrage capacity  1.5 T  maximum.
  • To lift  3 T use 2 insulated miner's bars, etc.
  • Maximum of one person per Miner's bar.
  • Do not use as a lever with fulcrum on the orange fiberglass part
  • Store in a dry place, away from  excessive heat  (heating pipes, etc.) and ultraviolet light
  • Do not use this tool at temperatures below - 20°C and above + 70°C.
Models available
  • 133700 - Miner's bar insulated (150 cm; 4.5kg) Nanovib BA150N
