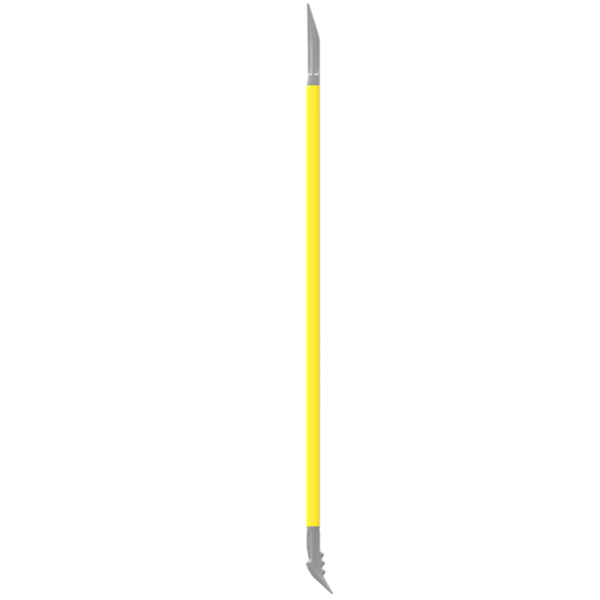

Nanovib Heel bar + flat end

Prevention of risk of accident

Lighter weight

• The  Nanovib®heel bar is  3 times lighter than comparable steel tools, reduces risk of MSD for the back.

Information Nanovib heel bar + flat end

Strength

• High performance hardened Aluminium alloy handle garantees capacity for lifting loads, strength and rigidity  comparable to steel
• Ergonomic forged steel heel and flat end
• 3 times lighter than traditional all-steel heel bars, gives new potential for use at heights, at  arm's length, easier to transport etc.

Product highlights

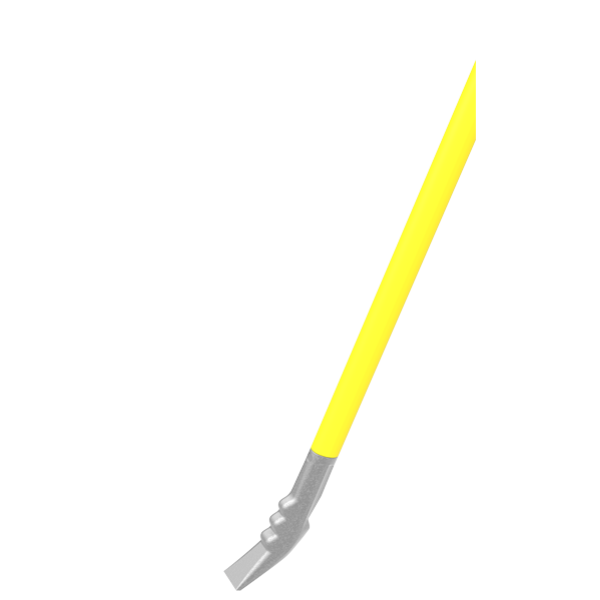

• Heel end, the 3 notches allow the tool to adapt to loads at  different heights from ground level

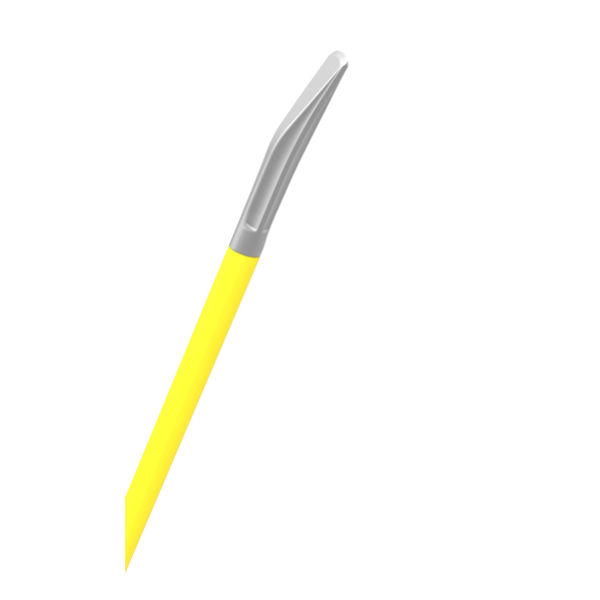

• Flat end, the  flat end  is intentionally set at an angle to allow  2 working positions

Safety recommendations

•  1 person per heel bar maximum (150 kg max. at the end of the handle)
• Do not lift more than 2 T per heel bar, to lift 4 t, use 2 heel bars, etc.
• Never use the aluminium part of the tool as a fulcrum for leverage or sliding loads
• Do not use heel bar on a small axis
• Avoid violent strikes on the aluminium part.

Steel cutting capacity
9 HRC/HA = Ø 9 mm max
40 HRC = Ø 8 mm max

Design
Tool awarded the Vinci innovation prize 2004
Certification GS
